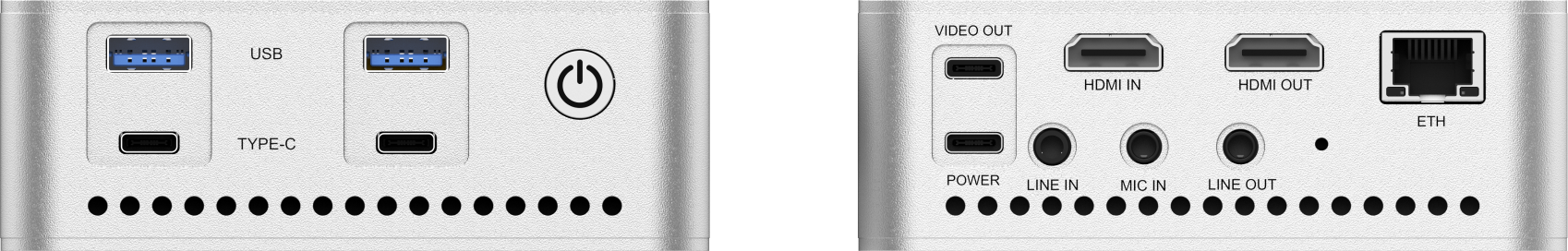

Appearance
Dimensions & Weight
Net Weight: 400g
CPU
8-core ARM A55-A76, 6 TOPS NPU
Bluetooth
Bluetooth 5.1
Network
Wi-Fi 5, 2.4G/5G Dual-band, 2.5G LAN
Video Out
HDMI×1、TYPE-C×1
Audio Out
HDMI、TYPE-C 、LINE OUT
OS
Sumerge OS
Input
p-specs.input_detail
Adapter
TYPE-C-DC12V-3A

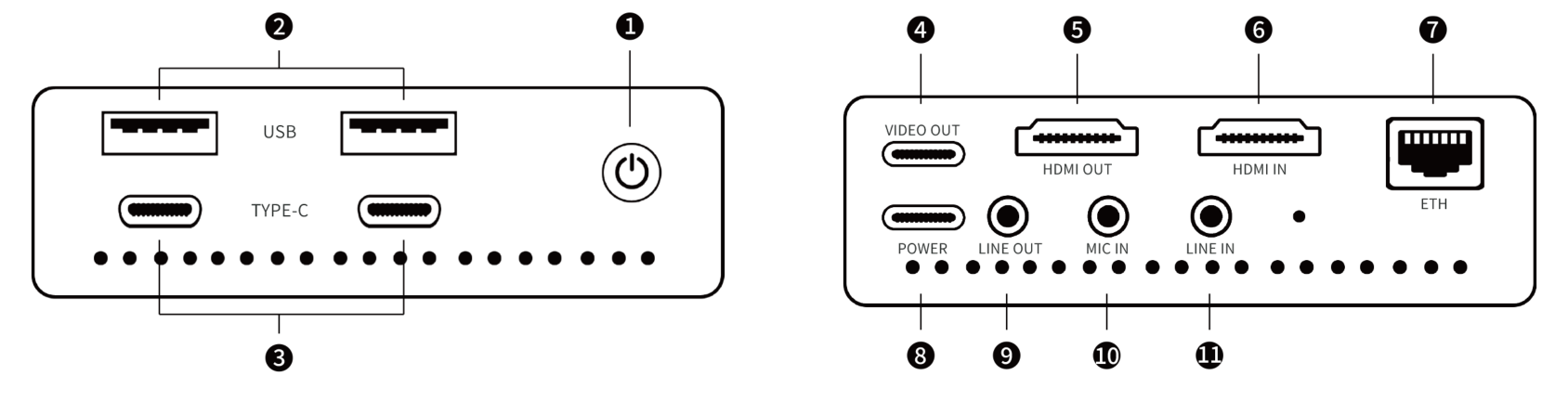

Interface Description
- 1Power Button & Indicator Light.
- 2USB Port: Supports connection to peripherals such as microphones and cameras with matching ports.
- 3Type-C Port: Connect the device to laptops or desktops via data cable. It also supports peripherals such as microphones and cameras with matching ports.
- 4VIDEO OUT Port: Video output port. Connect the device to a computer via data cable to transmit the device's display to the computer.
- 5HDMI OUT Port: A video output port. Use an HDMI cable to output the device's screen to other display devices.
- 6HDMI IN Port: High-definition input port. Connect other display devices or cameras with compatible ports via HDMI cable to feed video into this device.
- 7ETH Port: Ethernet port. Connect an Ethernet cable to access the network.
- 8POWER Port: Power inlet. Use the included power adapter to power the device.
- 9LINE OUT Port: Audio output port. It supports 3.5mm headphones for monitoring.
- 10MIC IN Port: Audio input port. It supports 3.5mm microphones for audio capture.
- 11LINE IN Port: Audio input port. It supports 3.5mm audio cables for connecting sound cards and other audio input devices.
Packaging List
1 × Jiahuihe Smart Teaching Box
1 × Power Adapter
1 × Type-C to USB-A Data Cable
1 × User Manual, Certificate of Conformity and Warranty Card
*The actual product shall prevail.
